Product Description

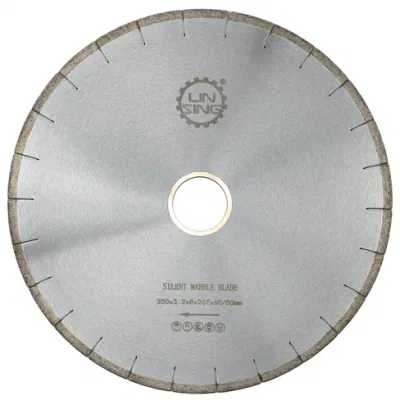

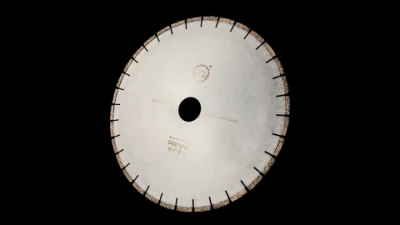

Diamond Saw Blade For Marble
Product Features:
1. Cutting in high speed without chipping;
2. Strict quality inspection, long lifespan;
3. Stable cutting performance, high cost-effective;
4. Silent and non-silent blade are available.
Production Specification:
| Diameter(inch/mm) | Steel Core Thickness(mm) | Segment Specification(mm) | Segment No.(pcs) |
| Φ12"/300 | 2.2 | 42/40x3.2x8(10) | 22 |
| Φ14"/350 | 2.2/2.4 | 42/40x3.4x8(10) | 25 |
| Φ16"/400 | 2.6 | 42/40x3.6x8(10) | 29 |
| Φ18"/450 | 2.8/3.0 | 40x4x8(10) | 32 |
| Φ20"/500 | 3.0/3.2 | 40x4.2x8(10) | 36 |
| Φ24"/600 | 3.6/3.8 | 40x5x8(10) | 42 |
| Φ28"/700 | 4 | 40x5.2x8(10) | 50 |
| Φ32"/800 | 4.5 | 40x6x8(10) | 57 |
| Φ36"/900 | 5.0 | 24x7.5x8(10,12,13,15) | 64 |
| Φ40"/1000 | 5.0 | 24x7.5x8(10,12,13,15) | 70 |
| Φ48"/1200 | 5.5 | 24x8.0x8(10,12,13,15) | 80 |
| Φ52"/1300 | 6.0 | 24x8.5x8(10,12,13,15) | 88 |
| Φ56"/1400 | 6.5 | 24x9.0x8(10,12,13,15) | 92 |
| Φ64"/1600 | 7.2 | 24x9.2x8(10,12,13,15) | 108 |
| Φ72"/1800 | 7.5 | 24x10x8(10,12,13,15) | 120 |
| Φ80"/2000 | 8.0 | 24x10.5x8(10,12,13,15) | 128 |
| Φ88"/2200 | 8.0/9.0 | 24x11x8(10,12,13,15) | 132 |
| Φ100"/2500 | 9.0 | 24x11x8(10,12,13,15) | 140 |
| Φ120"/3000 | 9.5 | 24x12x8(10,12,13,15) | 160 |
| Φ140"/3500 | 9.5 | 24x12x8(10,12,13,15) | 180 |
Other specifications are available upon request.
