Basic Info.
Product Description
Danyang Daming Import & Export Co., Ltd. is one of the professional saw blades and drill bits suppliers in China. We specialize in all kinds of tools such as HSS twist drill bits, electric hammer drill bits, masonry drill bits, woodworking drill bits, HSS hole saws, HSS taps, TCT saw blades, diamond saw blades, diamond core drills and some other power tool accessories and parts. We are located in Danyang City, Jiangsu Province, China, which provides easy access to air, water and land transportation.
Based on rich experience, advanced technology and professional skills, our products can always maintain the first rate quality as well as competitive prices. In recent years, our products have sold well in domestic and foreign markets, well received by customers in America, Europe, the Middle East, Indonesia and other countries and regions.

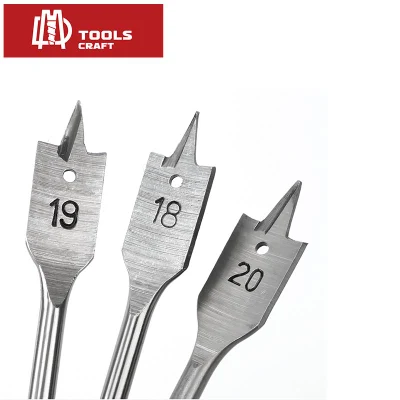

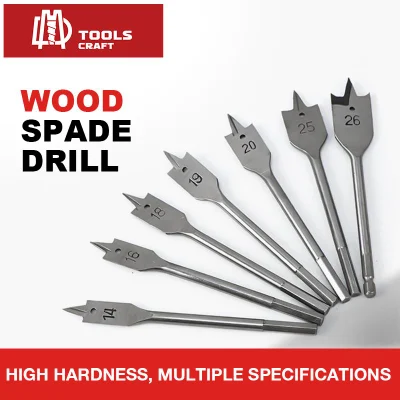

Using an expanded brad point tip with angle spurs and a distinguishable spike, spade bits are a drill bit type used exclusively for drilling large holes through wood. They most commonly feature a 1/4 hex shank, come in a range from 6-38mm in diameter, and can be combined with an extension shank to extend their reach.
* made of high carbon steel or chrome vanadium (crv) with brad point and 2 shouldered cutting spurs.
* centre point enters first; prevents "skating".
* cutting flutes are engineered for optimum chip ejection so drill will not bind and burn out.
* for drilling accurate, splinter-free holes in softwood, hardwood, plywood and hardboard.
* use hand drills, electric portable drills, drill presses and lathes.
1. Material: 45#Steel.
2. Surface: White Finish.
3. Package: pvc pouch.
wood flat drill bit
Forged in one piece from high carbon steel
For drilling in soft and close grained wood.
Surface finished: white finished, tin coated
For drilling accurately, splinter-free holes in soft wood, plywood and hardwood
Metric size and different cutting types are available.
REAL SHOT
Product Information
| Wood Flat Drill | |||||||||
| Process | Shank | Tip | Long(mm) | ||||||
| Milled | Round | Hex | 1/4″Hex Quick Change | Normal | Cross Cutter | 3 Spurs with Cross Culter | 152 | 300 | 400 |
Size:
| Art No. | Diameter | Length | |
| 30801001 | 6mm | 1/4" | 152mm |
| 30801002 | 8mm | 5/16" | 152mm |
| 30801003 | 10mm | 3/8" | 152mm |
| 30801004 | 11mm | 7/16" | 152mm |
| 30801005 | 12mm | 15/32" | 152mm |
| 30801006 | 13mm | 1/2" | 152mm |
| 30801007 | 14mm | 9/16" | 152mm |
| 30801008 | 15mm | 19/32" | 152mm |
| 30801009 | 16mm | 5/8" | 152mm |
| 30801010 | 17mm | 21/32" | 152mm |
| 30801011 | 18mm | 11/16" | 152mm |
| 30801012 | 19mm | 3/4" | 152mm |
| 30801013 | 20mm | 25/32" | 152mm |
| 30801014 | 22mm | 7/8" | 152mm |
| 30801015 | 24mm | 15/16" | 152mm |
| 30801016 | 25mm | 1" | 152mm |
| 30801017 | 26mm | 1-1/32" | 152mm |
| 30801018 | 28mm | 1-1/8" | 152mm |
| 30801019 | 30mm | 1-3/16" | 152mm |
| 30801020 | 32mm | 1-1/4" | 152mm |
| 30801021 | 35mm | 1-3/8" | 152mm |
| 30801022 | 38mm | 1-1/2" | 152mm |
| 30801023 | 40mm | 1-9/16" | 152mm |
Product Information
Metric | Inch | Length |
| 6MM | 1/4" | 152MM |
| 8MM | 5/16" | 152MM |
| 10MM | 3/8" | 152MM |
| 11MM | 7/16" | 152MM |
| 12MM | 15/32" | 152MM |
| 13MM | 1/2" | 152MM |
| 14MM | 9/16" | 152MM |
| 15MM | 19/32" | 152MM |
| 16MM | 5/8" | 152MM |
| 17MM | 21/32" | 152MM |
| 18MM | 11/16" | 152MM |
| 19MM | 3/4" | 152MM |
| 20MM | 25/32" | 152MM |
| 22MM | 7/8" | 152MM |
| 24MM | 15/16" | 152MM |
| 25MM | 1" | 152MM |
| 26MM | 1-1/32" | 152MM |
| 28MM | 1-1/8" | 152MM |
| 30MM | 1-3/16" | 152MM |
| 32MM | 1-1/4" | 152MM |
| 35MM | 1-3/8" | 152MM |
| 38MM | 1-1/2" | 152MM |
| 40MM | 1-9/16" | 152MM |
PACKING & SHIPPING
Packing: pvc bag,plastic box, blister card
1. TNT/FedEx/DHL/UPS for samples or under 45KG weight goods, Door to Door.
2. By Air or by Sea for batch goods, from airport(seaport) to airport(seaport).
3. Customers specifying freight forwarders or not.
4. Production Time: 3- 7 days for samples; 2-3.5 weeks for batch goods
